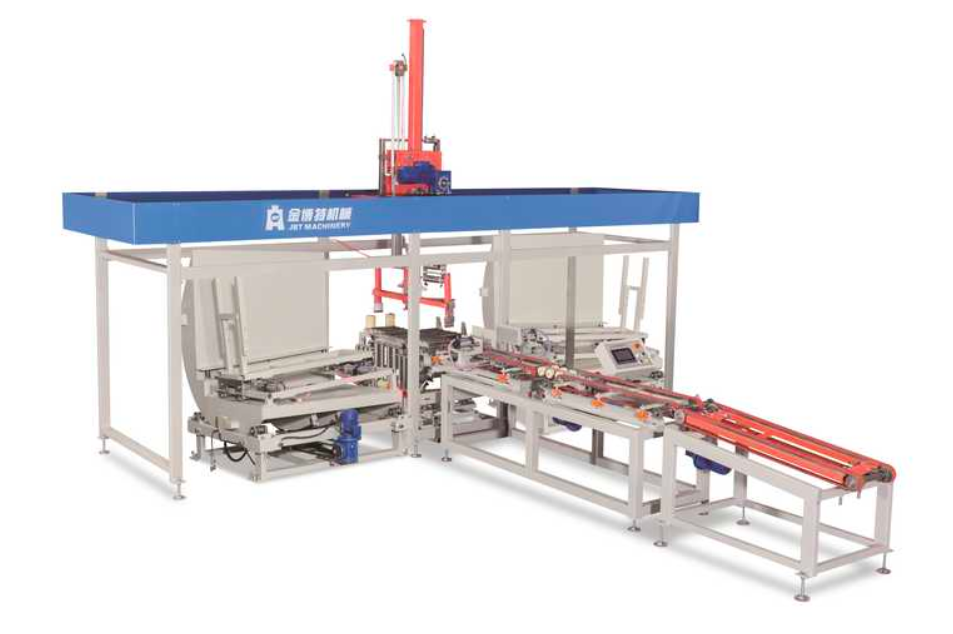

A robotic palletizer is an automated system used to organize and stack products, such as tile boxes, onto pallets for storage or transportation. This type of equipment is often utilized at the end of a production line, offering a fast, precise, and efficient method of preparing goods for shipment. In the context of tile production, a robotic palletizer is crucial for handling heavy and fragile tile boxes, reducing manual labor, and improving safety and accuracy in the palletizing process.



Purpose:

​

• The main function of a robotic palletizer is to automate the stacking of products (in this case, tile boxes) onto pallets in a precise and systematic way, optimizing space and ensuring stability during storage or transportation.

• It eliminates the need for manual labor in handling heavy boxes, reducing the risk of injury and increasing productivity.



Key Components of a Robotic Palletizer:

​

1. Robotic Arm:

   • Purpose: The robotic arm is the primary component of the palletizer, responsible for picking up tile boxes from the conveyor and placing them onto the pallet.

   • Design: The arm typically has multiple joints, allowing for flexibility in movement (including rotating, lifting, and reaching) to place boxes in the desired position. These robotic arms are highly programmable and can be customized for various stacking patterns and box sizes.

   • End-Effector (Gripper): The part of the robotic arm that physically handles the boxes. Different types of grippers may be used depending on the size, weight, and material of the boxes:

     • Vacuum Grippers: Use suction to securely lift boxes, ideal for smooth, flat surfaces like tile boxes.

     • Mechanical Grippers: Utilize clamps or fingers to hold and lift heavier or irregularly shaped boxes.

2. Conveyor System:

   • Purpose: Transports the tile boxes from the packing line to the robotic palletizer.

   • Design: Boxes move along the conveyor system and are positioned in front of the robotic arm, ready for pickup. The system is designed to accommodate varying sizes and types of tile boxes, ensuring seamless feeding to the robotic arm.

3. Pallet Dispenser:

   • Purpose: Automatically supplies empty pallets to the palletizing area.

   • Design: Pallet dispensers store a stack of empty pallets and feed them one at a time to the robotic arm. This automation reduces the need for manual intervention in pallet handling and keeps the line running efficiently.

4. Palletizing Software & Control System:

   • Purpose: Controls the operation of the robotic arm, coordinating its movements and managing the placement of boxes on the pallet.

   • Design: The software allows operators to input palletizing patterns (stacking configurations), adjust speeds, and monitor the system’s performance in real-time. Programmable Logic Controllers (PLCs) and Human-Machine Interfaces (HMIs) are often used to make the system user-friendly and easily programmable.

   • Customizability: Patterns can be adjusted based on the size of the pallet, the type of tile box, and the desired stacking arrangement (e.g., interlocking, columns, or cross-stacking for stability).

5. Safety Features:

   • Sensors and Barriers: To ensure the safety of operators, robotic palletizers are equipped with sensors and safety barriers. These systems detect when someone is too close to the robot’s working area and automatically stop the operation to prevent accidents.

   • Emergency Stop Systems: Allows operators to immediately halt the palletizer in case of malfunction or emergency.

6. Pallet Wrapping System (Optional):

   • Purpose: Some robotic palletizer systems include or are integrated with an automatic wrapping machine that wraps the stacked pallet in stretch film, securing the tile boxes for transport.

   • Design: The wrapping machine uses plastic film to tightly wrap the entire pallet, preventing the boxes from shifting or falling during shipping.



Working Process of a Robotic Palletizer:

​

1. Box Feeding: Tile boxes are moved via the conveyor from the packing line to the palletizing area. The conveyor positions the boxes in front of the robotic arm for pickup.

2. Box Pick-Up: The robotic arm, using its gripper (either vacuum or mechanical), picks up each box with precision, avoiding any damage to the tile boxes.

3. Palletizing: The robotic arm places the boxes on the pallet in a pre-programmed pattern. The software allows for various stacking configurations, ensuring optimal use of pallet space and stability of the stack.

4. Layer Formation: The robotic palletizer continues placing boxes layer by layer. Depending on the programming, it may rotate or adjust the orientation of the boxes to ensure that the stack is stable and can be safely transported.

5. Pallet Exchange: Once the pallet is fully loaded, it is moved to a wrapping station (if included), or directly to the storage or loading area. Meanwhile, a new pallet is automatically dispensed, and the process continues with the next batch of boxes.

6. Wrapping (Optional): If integrated with a wrapping system, the stacked pallet is automatically wrapped in stretch film for added security during transportation.



Benefits of Using a Robotic Palletizer:

​

1. Increased Efficiency:

   • A robotic palletizer operates continuously without breaks, significantly speeding up the palletizing process compared to manual labor.

   • It can handle large volumes of boxes with high precision and consistency, optimizing production line output.

2. Precision and Consistency:

   • Robotic arms are programmed to place boxes with exact accuracy, ensuring uniform stacking that reduces the risk of pallet instability during transport.

   • The system ensures that every pallet is loaded to its maximum capacity, maximizing space and reducing shipping costs.

3. Reduced Labor Costs:

   • Automating the palletizing process reduces the need for manual labor, especially for the heavy, repetitive tasks of lifting and stacking, which can be physically demanding.

   • Labor can be redirected to higher-value tasks, improving overall operational efficiency.

4. Enhanced Safety:

   • By automating the palletizing process, the risk of injury to workers from heavy lifting, repetitive motion, or accidents is significantly reduced.

   • Built-in safety features, such as sensors and barriers, ensure that the robot operates in a safe environment.

5. Flexibility and Customization:

   • Robotic palletizers can be easily reprogrammed to accommodate different product sizes, shapes, and stacking patterns, making them highly adaptable to changing production needs.

   • They can handle a variety of packaging configurations, from small, lightweight tile boxes to larger, heavier products.

6. Space Optimization:

   • Robotic palletizers are designed to use available space efficiently. Their compact footprint allows manufacturers to install them in tight spaces without disrupting the production flow.

7. Reduced Product Damage:

   • Robotic palletizers handle products with precision and care, reducing the risk of damage during the palletizing process, which is especially important for fragile items like tiles.

For a company like SAMOS TRADING, providing robotic palletizers could significantly enhance the efficiency and automation capabilities of tile manufacturing clients. These systems offer an effective solution for modernizing the packing process, ensuring high-quality palletizing, and reducing operational costs.
